医用刨刀

特性

应用领域:    用于关节镜内窥镜

材    料:   超防锈高硬度不锈钢,陶瓷,一般不锈钢

产品描述

LZQ是一家生产各种刨刀的OEM代工工厂，例如，内窥镜/关节镜刨刀 , 骨科钻针 , 取骨器 , 钻头，等等。我们也可以为客户生产成套手术工具。

   我们使用不锈钢和陶瓷材料。

   我们可以根据客户提供的任意图纸或者样品来生产任何刨刀，而且性价比很高。

我们的刨刀&锉优势在于:很好的切割性能; 长的服务寿命和耐久性; 可重用性; 无金属磨损; 完美的耦合。

提供的好处:对于操作人员来说更方便; 增加手术治疗精准度; 节约耗材; 更短的手术时间

刃部材料:

1.超高防锈高耐磨高抗冲击高韧性不锈钢（AA）（HRC54°±2°断面）(常规常备)

2.常规标准防锈超高耐磨不锈钢（A）（HRC64±°2°断面）

3.对焊硬质合金（钨钢）类（HRA87°～94°）系列(可定制)

内外刀均为六轴五联动CNC超硬砂轮（CBNC）高速研磨，刃口可近于镜面光洁度，刃口超锋利（后角可在20°～70°系列），手术中切割超干净，优良.

   目前LZQ在高硬度用、高耐磨用、高耐冲击用、高温合金、耐热合金、镍钒钛合金铸铁、不锈钢、钴基镍合金、钛合金……等难加工材料类的各类产品的生产加工上表现突出，并取得较大的成绩，常用进口材料有HRF10/K15A（超精加工→半精加工、高硬度用）、MR11（精加工→半粗加工、难加工材料用）、H10F/PR40（泛用型、通用型加工用）、VAR201（要求高耐冲击、高抗崩性加工用）、ASP60A（HSS-Co10）、SKH57C（HSS-Co）、ASTM440PH……近300种材种材料。

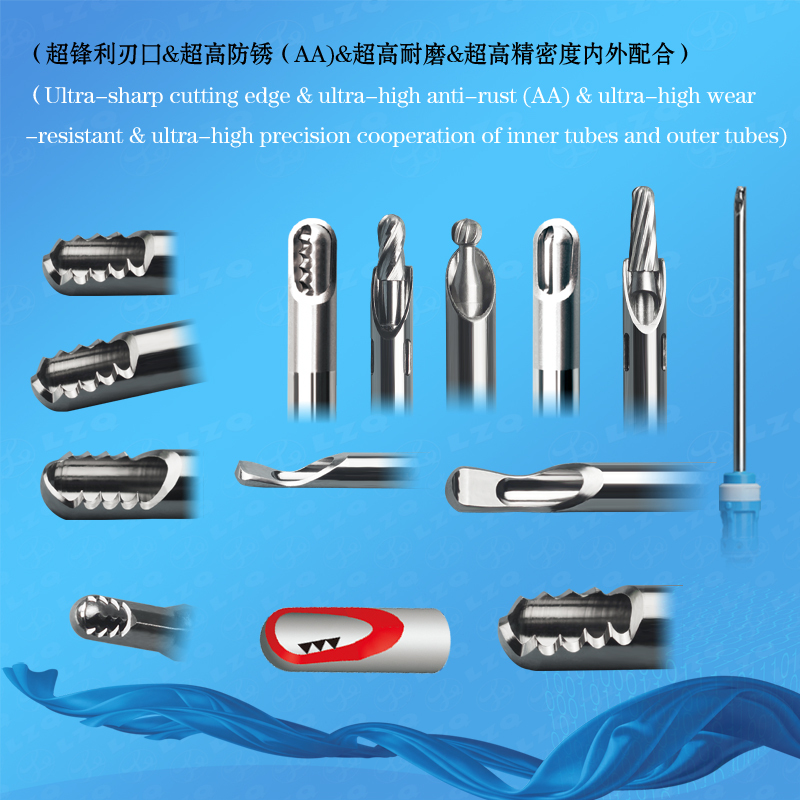

Medical Shaver Blade

Characteristics

   Application domain:    for arthroscopy endoscope

Material:    Super-high rust-resistant high-hardness stainless steel,

            ceramics,

            general stainless steel

Products Description

LZQ is an OEM factory for all kinds of shaver blades, such as Endoscopic/Arthroscopic Shaver blade , Bone Drill Point , Bone Fetcher , Drill Bit , ect.

      We use the material of stainless steel and ceramic.

       We are capable to produce any shaver blades according to drawings or samples provided by customer with a favorable cost-performance.

Our SHAVER BLADES & BURS are set apart by:Very good cutting properties; Long service life and durability; Reusability; No metal abrasion; Well-fitting couplings

The benefits to you:     More convenience for operating personnel; Increased precision for surgical procedures; Savings with consumables; Shorter operation times

Cutting edge Material Types:

ultra-high anti-rust high wear-resistant stainless steel（AA）（HRC54°±2°Section）(regular stock)

2. general anti-rust ultra-high wear-resistant stainless steel（A）（HRC64±°2°Section）

butt welding hard alloy（carbide）（HRA87°～94°）series(customizable)

       The inner blade and outer blade are grinded with high speed by 6-axis 5-linkage CNC superhard grinding wheel (CBNC). The edge can be close to the mirror finish, super-sharp (relief angle can be 20 ° ~ 70 ° series), super clean and excellent cutting during surgery.

At present , LZQ is good at producing tools for high-hardness， high wear-resistant andhigh impact-resistant products, like High-temperature alloy, Heat-resisting alloy, Vanadium-titanium alloy of nickel iron, Stainless steel, Cobalt-based nickel alloy, Titanium alloy or other items, made of difficult-processing material, and have done a good job. There are about 300 kinds of material we often use, like the imported ones,   HRF10/K15A(for application from super-finish machining to semi-finish machining and for high-hardness processing), MR11(for application from finish machining to semi-rough machining, and the use of hard-processing material ), H10F/PR40(for widely-used and ordinary processing application), VAR201(for high wear-resistant and chipping-resistant application), ASP60A(HSS-Co10), SKH57C(HSS-Co), ASTM440PH…totally about 300 kinds of material.
